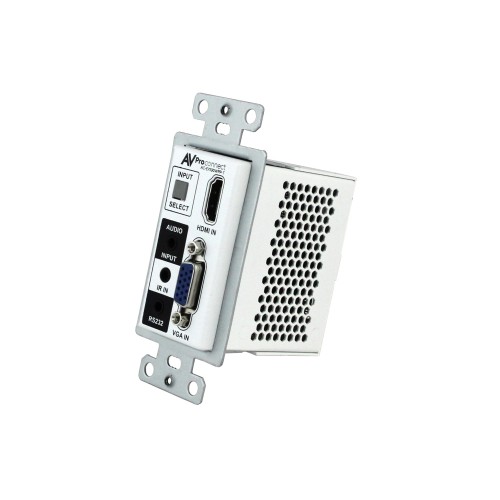

AC-EX100WPP-UHD-KIT

Single Gang wall plate transmitter with No Compromises

• HDMI 2.0 & VGA auto sensing Inputs
• 4K 30 4:4:4, 4K60 4:2:0
• HDR 4:2:2 12 Bit Support
• HDCP 2.2 & Earlier Supported
• 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
• No Local Power Necessary (Powered by AC-EX100-UHD-R)
• Single Gang (Decora), Low heat, rugged, long-life chassis
• “Straight In” RJ45 Jack Design.  Easy to install.
• Compatible with HDBaseT displays, projectors, AVR’s
• Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.

Key benefits of using AC-EX100WPP-UHD-T

1) ULTRA HIGH DEFINITION: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user.  Our AC-EX100WPP-UHD-T supports 4K up to 70M (230ft) with crystal clear 4K Resolution & 100M (330ft) on 1080P

2) DISTANCE: By using AC-EX100WPP-UHD-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft)

3) AUTO SENSING: This wall plate is designed to be a “Set it & forget it” piece of hardware.  When the user plugs in their device (BYOD), the wall plate automatically senses the signal and makes it active.  If both inputs are in use, there is a simple button on the front to toggle inputs.

4) CONTROL: IR & RS-232 allow control of a rack or standalone projector or display.

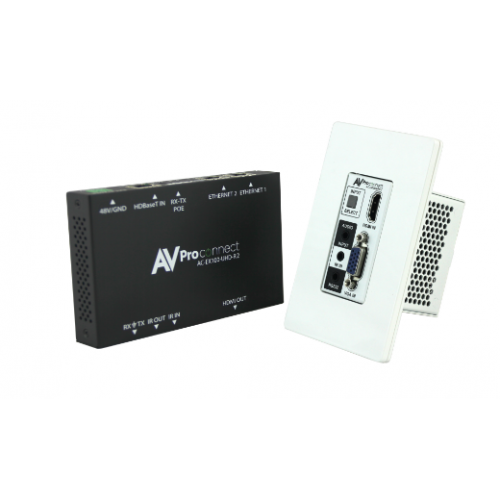

5) POWER: No local power required when you use the AC-EX100-UHD-R.  Power is provided by ultra-stable PoE technology. Optionally you can power it locally for use with any HDBaseT Receiver.

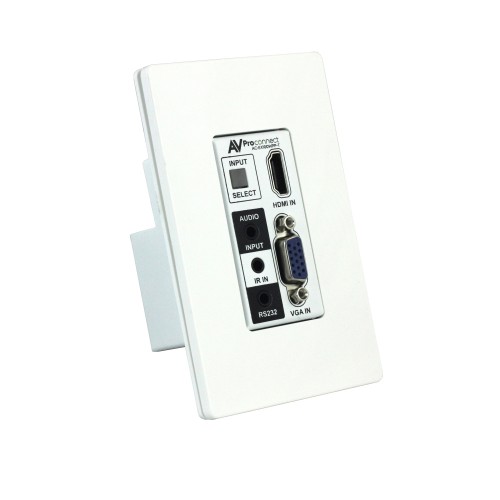

6) SINGLE GANG: Save space and make a squeaky clean installation with the single gang configuration.  This wall plate fits in more places than ever!

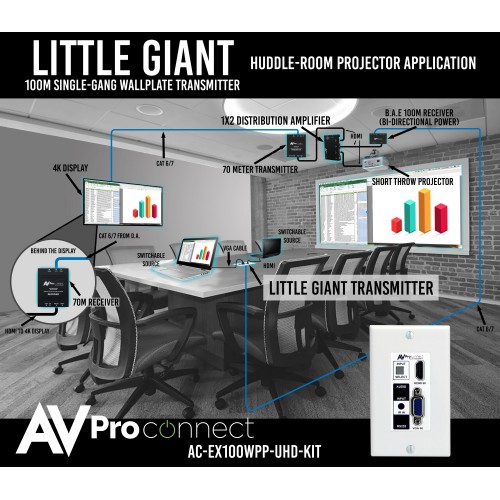

• Conference/huddle room configurations where many sources types can be used, like computers, players, etc…
• Extends VGA and HDMI up to 100M (330FT) for large auditorium type scenarios.
• To carry the control signals (IR/RS232) for third party control integration for turning components on and off and switching channels, etc.
• Create simple presentation venues, with audio, that are plug and play and reliable
• Auto sensing, so the end user has ZERO configuration – Anywhere where non-technical users will access the system.
